The round head and cross recess screws are waterproof like our entire range of screws. They are adaptable to your application:diameter, joint length, steel, ...
SPECIAL FEATURES OF CRUSH DRAW SCREWS, DOMED HEAD

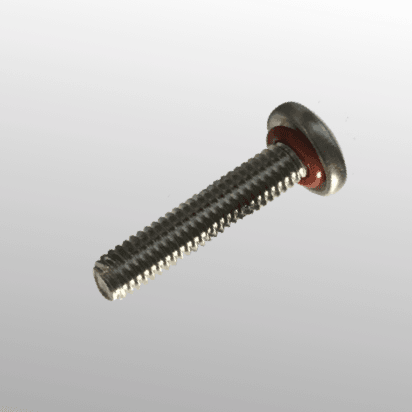

The Phillips socket screw, pan head with gasket is designed to seal against air, water, lubricants and other liquid or gaseous contaminants.
The o-rings are pre-mounted on the screws. A single reference therefore allows sealing in addition to the fixing function.

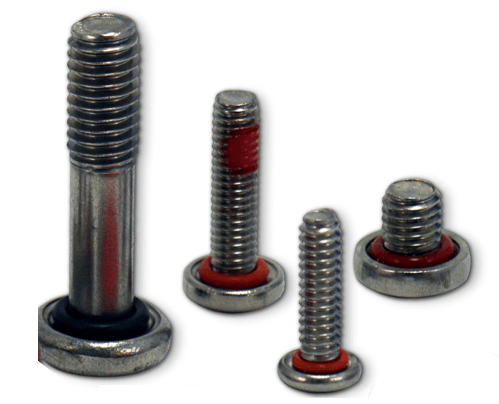

The cross head screws have standard or configurable lengths, to adapt perfectly to your application.
TECHNICAL DATA OF CRUSHIFORM SCREWS
- Material: 18/8 stainless steel
- Elastomer seal: Silicone conforming to AA-59588, Class 3A, GR50, green in American pitch, red in metric pitch.
- Operating temperature: -62° C to 219° C
- Pressure: up to 1300 bar (01 34 85 54 68 psig internal and external)
- Resistant to splashes, salt spray, sunlight, ozone, weather, fungus, dust and most acids and lubricating oils.
- Lifespan: more than 25 years.
- Reusable up to 10 times
- Protection: IP66 / IP68
