The slotted head cylindrical screws are waterproof like our entire range. They are adaptable to your application:diameter, length, type of joint, steel A2, A4, ...
SPECIAL FEATURES OF SLOTTED HEAD SCREWS

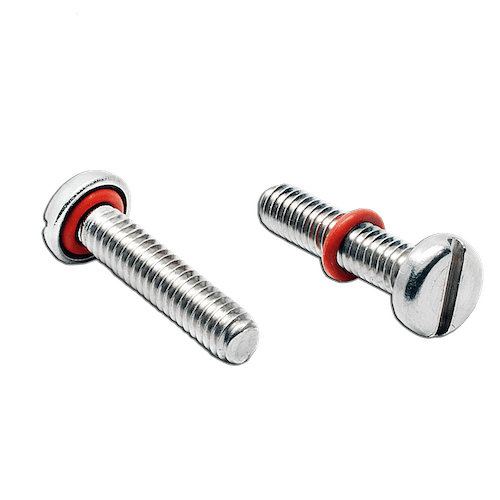

The Pan Head slotted screw is the self-sealing pan head screw. Our gasketed screws are designed to seal against air, water, lubricants and other liquid or gaseous contaminants.
The o-rings are pre-mounted on the screws. A single reference therefore allows sealing in addition to the screwing function thanks to a single reference.

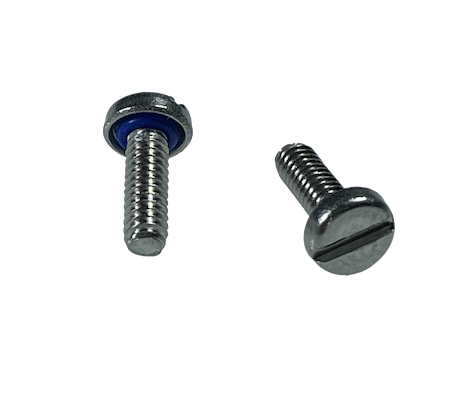

The rounded cylindrical type screws can be metric or American pitch.
Standard sizes available range from M1.6
until M30
for lengths of 2
has 50
mm.
Other sizes are available upon request, please do not hesitate to contact us for specific requirements.
TECHNICAL DATA OF SLOTTED HEAD SCREWS
- Material: 18/8 stainless steel
- Elastomer seal: Silicone conforming to AA-59588, Class 3A, GR50, green
- Operating temperature: -62° C to 219° C
- Pressure: up to 1300 bar (01 34 85 54 68 psig internal and external)
- Resistant to splashes, salt spray, sunlight, ozone, weather, fungus, dust and most acids and lubricating oils.
- Lifespan: more than 25 years.
- Reusable up to 10 times
- Protection: IP66 / IP68
Contact us for any technical requests
